MODFLOW-NWT model used in simulation of groundwater flow and availability in the North Fork Red River aquifer, southwest Oklahoma, 1980-2013

Metadata Updated: December 4, 2018

In 2017 the U.S. Geological Survey, in cooperation with the Oklahoma Water Resources Board, published a calibrated numerical groundwater-flow model and associated model documentation report that evaluated the effects of potential groundwater withdrawals on groundwater flow and availability in the North Fork Red River aquifer in southwest Oklahoma. The results of groundwater-availability scenarios run on the calibrated numerical groundwater-flow model could be used by the Oklahoma Water Resources Board to reevaluate the maximum annual yield of groundwater from the North Fork Red River aquifer in Oklahoma. The numerical groundwater-flow model was built on a hydrogeologic framework and a conceptual groundwater-flow model derived from previously published and newly collected hydrologic data. A hydrogeologic framework is a three-dimensional representation of the aquifer and the surrounding geologic units at a scale that captures the regional controls on groundwater flow. The hydrogeologic framework for the North Fork Red River aquifer included a definition of the aquifer extent and potentiometric surface, as well as a description of the textural and hydraulic properties of aquifer materials. A conceptual groundwater-flow model is a simplified description of the major inflow and outflow sources (hydrologic boundaries) of a groundwater-flow system as well as an accounting of the estimated mean flows from those sources (water budget) for a specified period of time. The hydrogeologic framework and conceptual model are necessary constraints used in the construction and calibration of a scientifically defensible numerical groundwater-flow model that reasonably represents the groundwater-flow system. A finite-difference numerical groundwater-flow model of the North Fork Red River aquifer was constructed by using MODFLOW-2005 with the Newton formulation solver (MODFLOW-NWT). Data inputs for each package were specified in machine-readable text files. The numerical model of the North Fork Red River aquifer had 385 rows, 460 columns, about 27,600 active cells of 886 by 886 ft (270 by 270 meters), and 2 convertible layers. The top layer (layer 1) represented the undifferentiated Quaternary alluvium and terrace deposits with variable thickness determined from the hydrogeologic framework, and the bottom layer (layer 2) represented the Permian bedrock with a nominal thickness of about 100 feet. The model active area was created from the North Fork Red River aquifer extent and expanded in some areas to ensure that each active cell was in connection with at least one other active cell. One terrace lobe in northern Beckham County was not included in the model active area because it was almost separated spatially and hydraulically from the rest of the North Fork Red River aquifer. The numerical model was temporally discretized into 408 monthly transient stress periods (each with 2 time steps) representing the period 1980–2013. An initial steady-state stress period, in which the groundwater-flow equation had no storage component, represented mean annual inflows to and outflows from the aquifer and produced a solution that was used as the initial condition for subsequent transient stress periods. The numerical model was constructed in units of meters and days. This USGS data release contains all of the input and output files for the simulations described in the associated model documentation report (

Access & Use Information

License: No license information was provided. If this work was prepared by an officer or employee of the United States government as part of that person's official duties it is considered a U.S. Government Work.

Downloads & Resources


Metadata Date July 21, 2017
Metadata Created Date December 1, 2018
Metadata Updated Date December 4, 2018
Reference Date(s) January 1, 2017 (publication)
Frequency Of Update notPlanned
Frequency Of Update notPlanned

Metadata Source

Harvested from DOI CKAN Harvest Source

Graphic Preview

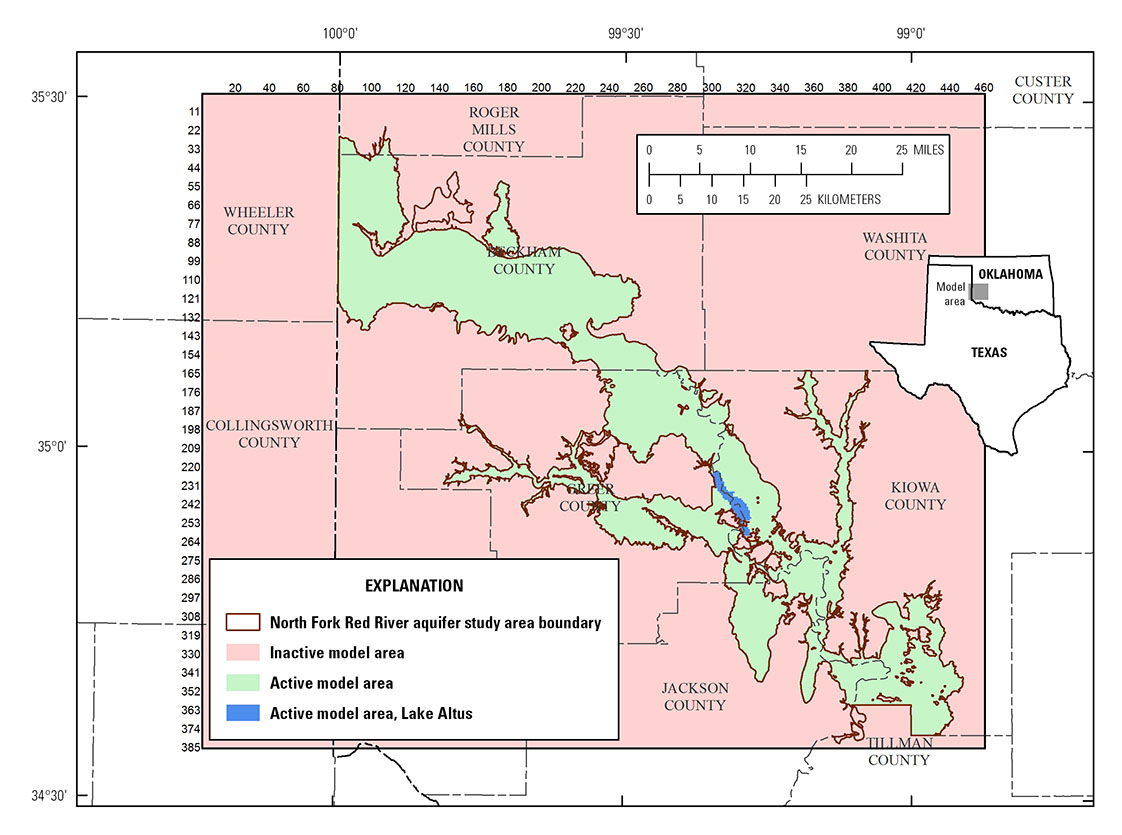

Image showing the model domain with active and inactive areas of the numerical groundwater-flow model for the North Fork Red River aquifer in southwest Oklahoma
